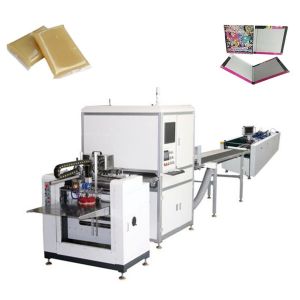

Full Automatic Gluing Positioning Book Case Machine
Product Description
Full Automatic multi-functional gluing positioning machine is the
best equipment to produce high-end world cover boxes, book boxes,
hard book shell and other new products. Reasonable design, stable
performance, equivalent to the international leading technology
level. Adopt PLC programmable controller, HD Camera positioning
system, Yamaha mechanical arm to positioning , touch human-machine
interface. Realize the automatic paper, automatic gluing, automatic
positioning box or grey board are completed at one-time finish. The
machine production efficiency is several times higher than that of
the traditional craft production, also have fault diagnosis display
and alarm function, operation safety guarantee. Suitable for making
the high-quality goods class electronic hard cover, jewelry box,
and other high-grade packing gift box.
Product Advantage
1, the automatic shell machine generally adopts feida automatic
paper feeding structure, the whole movement is pneumatic control,
the structure is simple and reasonable.
2. The width adjustment of the stack platform and the paper
platform adopts the center concentric adjustment, and the operation
is simple without error.
3, the cardboard feeding table adopts linear guide rail, accurate.
4. There is an automatic stop device for the paperboard feeding
table to reduce the rejection rate of good products.
5. The conveyor belt adopts high-power suction fan, which makes the
paper transportation more stable and accurate.
6. The paper conveying and positioning system adopts imported
high-precision photoelectric control, making the positioning of
paper and paperboard more accurate and reliable.
7. The rear automatic four-side dismantling machine adopts unique
automatic pressure Angle and blanking mechanism to ensure the
qualified rate of finished products.
8. The automatic leather shell machine material collecting platform
adopts the desktop stacking conveying and discharging, which is
more convenient for material receiving.
Other Product Recommend
Jelly Glue / Hot Glue For Book Cover Machine
Technical Parameter
Paper Wrap Size (L=Length,W=Width) | Widest(W) | 630mm |
| Narrowest(W) | 100mm |
| Longest(L) | 820mm |
| Shortest(L) | 120mm |
Hard Book Case Size L=Length W=Width
| Longest(L) | 800mm |
| Shortest(L) | 180mm |
| Widest(W) | 450mm |
| Narrowest(W) | 120mm |
| Thickness of Paperboard(g/m2) | Thinnest(T) | 1.0mm -4.0mm |
| | |
| Thickness of Paper(g/m2,) | Range | 80g/m2-200g/m2 |
| Speed | ≤35pcs/min |
| Air pressure | 6-8bar |
| Voltage | 380V/50HZ |
| Moter power | 18kw |
| Heater power | 6kw |
| Net Weight | 5800kgs |
| Machine Overall Dimension | L6.5m×W4.3m×H2.2m |
Product Flew
Our Services
1. Pre-Sales Service:
Inquiry and consulting support.
Sample testing support.
View our Factory.
2. After-Sales Service
Training how to install the machine, training how to use the
machine.
Engineers available to service machinery overseas.
3. Warranty
We provide 12 months warranty. During warranty, we provide free
technical support and free normal spare parts for replacing, except
for man-made damage. We can go to your country to debug machine
when you have questions can not resolve, but you must pay
100usd/day to our engineer.
