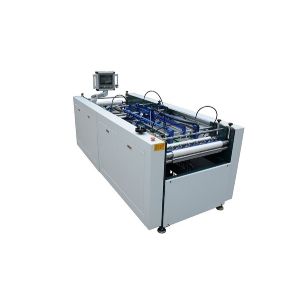

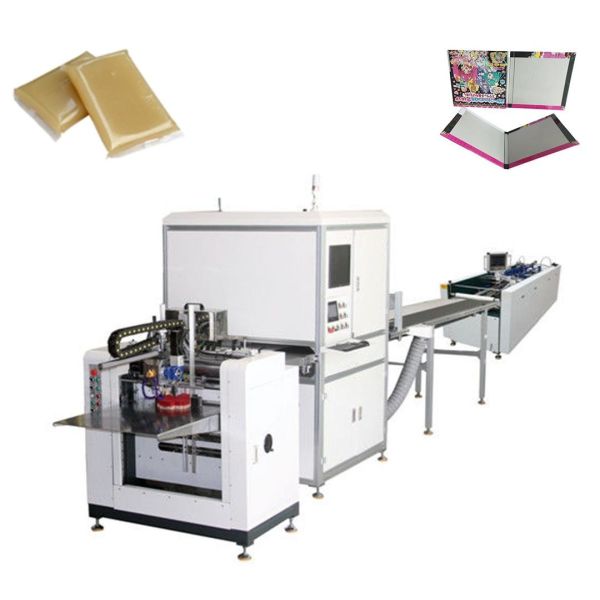

Full Automatic Hard Case Making Machine / Automatic Positioning
Gluing Machine
Features and function configuration
1. Suitable for all kinds of quare hard book case to automatic
production
2. Automatic clamp grey board leading device
3. Computer control with error auto stop and display
4. Automatically feed paper and greyboard
5. 24-hours control for glue pre-heating

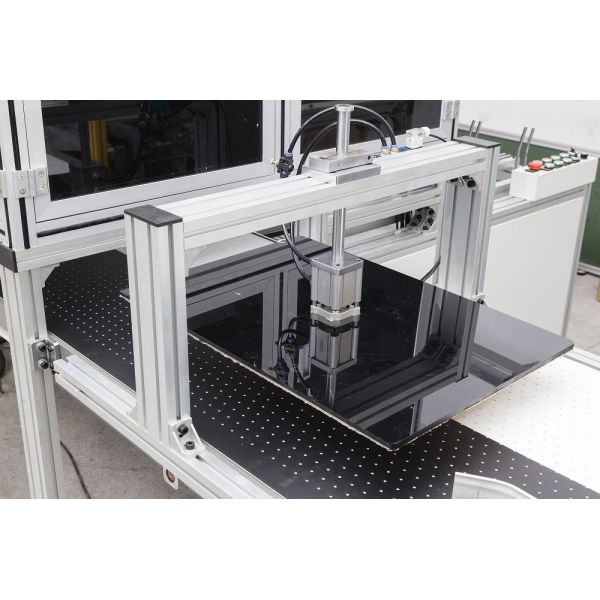

6. Spotter by 2pcs of 5 megapixel HD Camera tracing system and
Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm
7. Folder can automatically and continually foldling four side and
pressing.
8. Automatic control system for hot glue viscosity(optional).
Product Flew
Product Application
Other Product Recommend
Hot Glue / Jelly Glue for full automatic case maker
Product Advantage
1, the automatic shell machine generally adopts feida automatic
paper feeding structure, the whole movement is pneumatic control,
the structure is simple and reasonable.
2. The width adjustment of the stack platform and the paper
platform adopts the center concentric adjustment, and the operation
is simple without error.
3, the cardboard feeding table adopts linear guide rail, accurate.
4. There is an automatic stop device for the paperboard feeding
table to reduce the rejection rate of good products.
5. The conveyor belt adopts high-power suction fan, which makes the
paper transportation more stable and accurate.
6. The paper conveying and positioning system adopts imported
high-precision photoelectric control, making the positioning of
paper and paperboard more accurate and reliable.
7. The rear automatic four-side dismantling machine adopts unique
automatic pressure Angle and blanking mechanism to ensure the
qualified rate of finished products.
8. The automatic leather shell machine material collecting platform
adopts the desktop stacking conveying and discharging, which is
more convenient for material receiving
Technical Parameter
Paper Wrap Size (L=Length,W=Width) | Widest(W) | 630mm |
| Narrowest(W) | 100mm |
| Longest(L) | 820mm |
| Shortest(L) | 120mm |
Hard Book Case Size L=Length W=Width
| Longest(L) | 800mm |
| Shortest(L) | 180mm |
| Widest(W) | 450mm |
| Narrowest(W) | 120mm |
| Thickness of Paperboard(g/m2) | Thinnest(T) | 1.0mm -4.0mm |
| | |
| Thickness of Paper(g/m2,) | Range | 80g/m2-200g/m2 |
| Speed | ≤35pcs/min |
| Air pressure | 6-8bar |
| Voltage | 380V/50HZ |
| Moter power | 18kw |
| Heater power | 6kw |
| Net Weight | 5800kgs |
| Machine Overall Dimension | L6.5m×W4.3m×H2.2m |
Our Exhibitions
We attended at least three oversea exhibitions every year to show
our products to clients, warmly welcome to visit our booth in the
exhibitions.
Frequently Asked Questions
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood box. Suitable for
exporting.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the
photos and video of the products and packages before you pay the
balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CIF.
Q4. How about your delivery time?
A: Generally, it will take 7 to 15 days after receiving your down
payment. The specific delivery time depends on the items and the
quantity of your order.
Q5. Can you produce according to my requests?
A: Yes, we can produce according to your requests. We can design
and develop the machine.
Q6. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our
customers benefit ;
2. We respect every customer as our friend and we sincerely do
business and make friends with them, no matter where they come
from.
