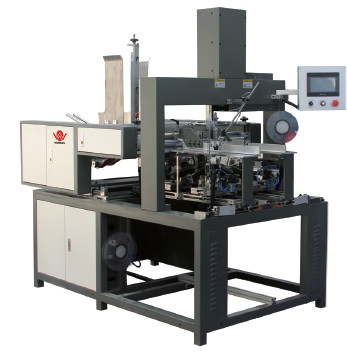

Corner Pasting Machine / Automatic Corner Pasting Machine / Four
Corner Pasting Machine / Gift Box
Automatic Rigid Box Corner Pasting Machine Catalog...
Production Features:
1.The machine adopts single arm press device and thermostatic
temperature control system.
2.The machine can use various hot-melt adhesive tape, the width is
usually 19mm. other width of tape have to special to make it.
3.The length of adhesive tape can be adjusted between 10-50mm
length by once for the different boxes.
4.The machine simple operation, fast working speed30-90pcs/min,
high production efficiency, high cost performance.
5 Boards feed from bottom, thus no need to stop the machine for
adding boards.

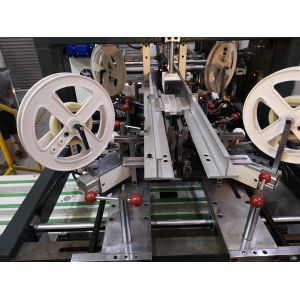

6 Stepper motors feed hot melt tapes which are pasted onto 4
corners at the same time.
7. The mainshaft adopts servo motor to drive the gear guide rail,
making sure every accurate movement.
8. Operated by touch screen, with both Chinese and English by one
switch.
Other Product Recommend
Gift Box Corner Pasting Tape
Technical Parameter
| Model | WM-40A |
| Grey Board Thickness | 1-4mm |
| Max. length of box | 500mm |
| Min. length of box | 45mm |
| Max. width of box | 400mm |
| Min. width of box | 40mm |
| Max. height of box | 120mm |
| Min. height of box | 12mm |
| Speed | 30-90pcs/min |
| Power | 3.0kw |
| Air pressure | ≧0.6MPa |
| Power Supply | 220V/50Hz |
| Weight | 1000kg |
| Machine Size | L2000*W1000*H2000mm |
Rigid Box Product flew
Our Exhibitions
We attended at least three oversea exhibitions every year to show
our products to clients, warmly welcome to visit our booth in the
exhibitions.
Safety precautions
1. Before production, please wear labor protection equipment to
ensure the health and safety of operators.
2. Please designate professionals to train on-the-job operation and
maintenance equipment.
3. When problems are found, please solve them in time. We can't
continue production without problems.
4. Compliance with safety precautions during production can prevent
accidents and potential hazards.
5. Verify whether the equipment is in normal condition before the
equipment is running, such as checking the air pressure, resetting
the mould, etc.
6. The equipment can not touch any rotating parts and movable parts
in the operation process, so as to avoid causing personal injury.
7. Keep all air passages open.
8. It is forbidden to touch the high-temperature head-mounted parts
by hand after being heated by electricity.
9. No touch adjustment is allowed when the equipment is running.
