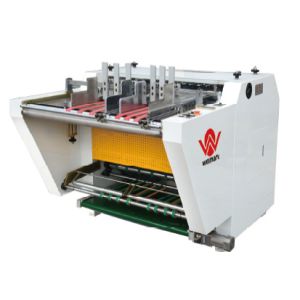

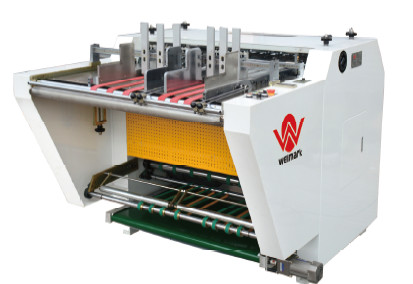

Automatic Grooving Machine / Notching Machine / Grooving Machine /
Grooving Machine For Cardboard And MDF board
Automatic Grooving Machine catalog.pdf
Product Character
1. Each cutting blade could move left and right by itself.
2. Double sides position plate are adjustable. The can ensure the
precision.
3. The belt press wheel could adjust the pressure of belt.
4. The counter is used for record the number of production.
5. The wheel is use for adjust grooving degree from 80-140.
6. Scrap remove equipment.
7. Special use knife grinder, usually grind one piece of cutting
blade need 2 minutes only.

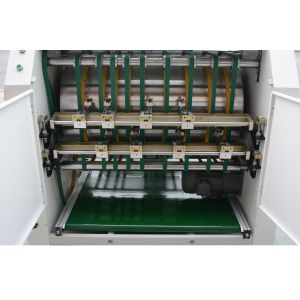

8. Cutting blade and holder.
9. Standby belt and 4kw adjustable speed Frequency converter.
Technical Parameter
| Model | WM-1200A |
| Widest(W) | 900mm |
| Narrowest(W) | 50mm |
| Longest(L) | 650mm |
| Shortest(L) | 100mm |
| Max numbers of Groove | 8 |
| Distance of each groove | 0-900mm |
| Thickness of Paperboard(T) | 1.0-4.0mm |
| Speed | 20-35m/min |
| Voltage | 220V/50Hz |
| Power | 2kw |
| Weight | 1300kgs |
| Machine Size | L1750*W1600*H1500mm |

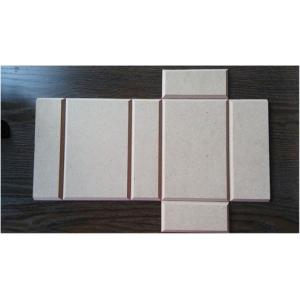

Product Application
Grooving machine belong to the Gift box package production line
equipment. The machine is special designed for notching V type
groove, use for industry-cardboard, Ash-cardboard, MDF board and
other several of cardboard, to make it suitable for box or other
packaging making.
Suitable for High quality package, Gift Box, Jewelry boxes, Watch
packaging, mobile phone boxes, wine boxes, Storage box, shirt and
shoes boxes, make-up, toiletry boxes, biscuits and cakes boxes,
note book cover, book shape boxes, hardcover, file folders,
display, game boards, display stands, posters and calendars, etc.
