Manual Feeding Gluing Machine with Convoyer Belt / Gluing Machine

Ask Lasest Price
Brand Name :	Wellmark
Model Number :	WM-650C
Payment Terms :	T/T, L/C at sight
Supply Ability :	20 set per month
Delivery Time :	5-8 work day
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Manual Feeding Gluing Machine with Convoyer Belt / Gluing Machine

Manual Feeding Gluing Machine with Convoyer Belt / Gluing Machine

Product Description

WM-650C Manual Feeding Gluing Machine is adopt s hot water circulation automatic washing machine, this machine has stable performance,low cost, high efficiency,use the hot melt materials, thus avoiding traditional latex box after shrinkag deformation and mold, and reduce the production loss, reduce the production cost and tissues for high-end mobile phone boxes, jewelry boxes, cosmetic boxes, gift boxes, watches boxes, high-grade wine boxes, hardcover boxes, CD boxes industry of plastic.

This machine has an indirect heating and temperature control system, which can be applied to the place where the working environment is low. The system models can be assembled into various forms of assembly line according to the needs of the product. This machine can be applied into folders, file boxes, clothing box, shoes box, hardcover and other products. This machine has high efficiency; adaptabolity, hot meltadhesive, glue, latex can be used. Variable speed, no wear, no deformation, feeding, high precision.

Other Product Recommend

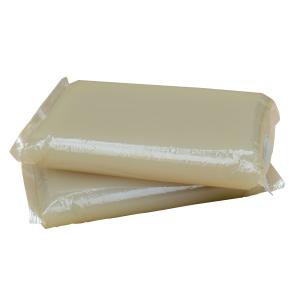

Hot Melt Adhesive Jelly Glue / Hot Glue

Product Features

1. Manual sheet-fed front edge suction for various sheet sizes.
2. Adjustable rollers apply smooth glue coating on the sheet surface.
3. The circulating glue system with temperature controller assures the adequate glue consistency.
4. Conveyor equipped with air-suction system to forward sheet flat and stably.

TECHICAL PARAMETERS

TECHICAL PARAMETERS
MODEL	WM-650C	WM-850C
WIDTH	W80-600MM	W80-800MM
PAPER THICKNESS	80-200GSM	80-200GSM
WORKING SPEED	7-40PCS/MIN	7-40PCS/MIN
POWER	7.5KW	7.5KW
AIR PRESSURE	0.6-0.8MPa	0.6-0.8MPa
VOLTAGE	380V/50HZ	380V/50HZ
MACHINE WEIGHT	1000KG	1200KG
MACHINE SIZE	680014501300MM	780016501300MM

Our Services

1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.

Product Application

Gluing Machine is suitable for feeding and gluing the paper which is for making book cover, rigid box, set up box, etc.

It has the function of automatic temperature control and 24-hours timer.

The suction devices for the assembly lines prevent cover paper from curling and bubbling.

Hot melt adhesives (animal adhesives) are used for health and environmental protection ,and they also save cost because of the recycle system and the adjustable speeds .
