Full Automatic Positioning Gluing Machine / Rigid Box Machine For Gift Box

Ask Lasest Price
Brand Name :	WELLMARK
Model Number :	WM-650AP
Price :	Negotiable
Payment Terms :	T/T, L/C at sight
Supply Ability :	5 set per month
Delivery Time :	25-30 working days after receive the deposit .

Add to Cart

Product Details
Company Profile

Full Automatic Positioning Gluing Machine / Rigid Box Machine For Gift Box

Full Automatic Positioning Gluing Machine / Rigid Box Machine For Gift Box

Product Description

WM-650AP Accurate Positioning Gluing Machine is the best equipment to produce high-grade of rigid box and hardcase also,it have reasonable design, stable performance, equivalent to the international leading technology level. Adopt PLC programmable controller,HD Camera positioning system,Yamaha mechanical arm to positioning , touch human-machine interface. Realize the automatic paper, automatic gluing, automatic positioning one-time finish. The machine production efficiency is several times higher than that of the traditional craft production, also have fault diagnosis display and alarm function, operation safety guarantee. Suitable for making the high-quality goods class electronic hard cover, jewelry box, and other high-grade packing gift box.

Note: the maximum size of the box and minimal size depends on the paper at the same time the maximum and minimum size and surface quality of the paper. Speed will depending on the different boxes size with different paper materials.

Product Features

1. Automatically feed paper and boxes or grey board.

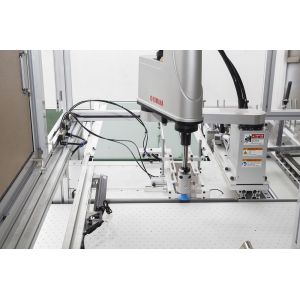

2. Spotter by 2pcs of 5 megapixel HD Camera tracing system and Yamaha mechanical arm to positioning (spotting accuracy ≤0.1mm

3. The whole machine adopts PLC control, HD Camera positioning system, touch human-machine interface, positioning box with fast speed.

4. Computer control with error auto stop and display

5. this machine can choose to make the rigid boxes or hard cover,just ready the different feeder conveyor before order.

Other Product Recommend

Hot Melt Adhesive Glue

Techical Parameters

Paper Wrap Size (L=Length,W=Width)	Widest(W)	600mm
	Narrowest(W)	95mm
	Longest(L)	820mm
	Shortest(L)	120mm
Box Size L=Length W=Width H=Height	Longest(L)	450mm
	Shortest(L)	120mm
	Widest(W)	400mm
	Narrowest(W)	45mm
	Highest(H)	120mm
	Lowest(H)	15mm
Hard Case Size	Widest(W)	500mm
	Narrowest(W)	80mm
	Longest(L)	800mm
	Shortest(L)	60mm
Thickness of Paperboard(g/m²)	Thinnest(T)	1.0mm - 4.0mm
Thickness of Paper(g/m²)	Range	80g/m²-300g/m²
Speed		≤32pcs/min
Air pressure		0.6-0.8MPa
Voltage		380V/50HZ
Power		11.5kw
Net Weight		2000kgs
Machine Overall Dimension		L4.5m×W4.0m×H2.1m

Product Show

Full Automatic Positioning Gluing Machine / Rigid Box Machine For Gift Box

Our Services

1. Pre-Sales Service:

Inquiry and consulting support.
Sample testing support.
View our Factory.

2. After-Sales Service

Training how to install the machine, training how to use the machine.
Engineers available to service machinery overseas.

3. Warranty

We provide 12 months warranty. During warranty, we provide free technical support and free normal spare parts for replacing, except for man-made damage.We can go to your country to debug machine when you have questions can not resolve,but you must pay 100usd/day to our engineer.

Look forward to long term cooperation with customers, we will make best service and aftersales service for all of our customers.
